SpringCloud_组件基本使用_基础使用

一、创建cloud聚合父工程 ​

初始化工程及配置 ​

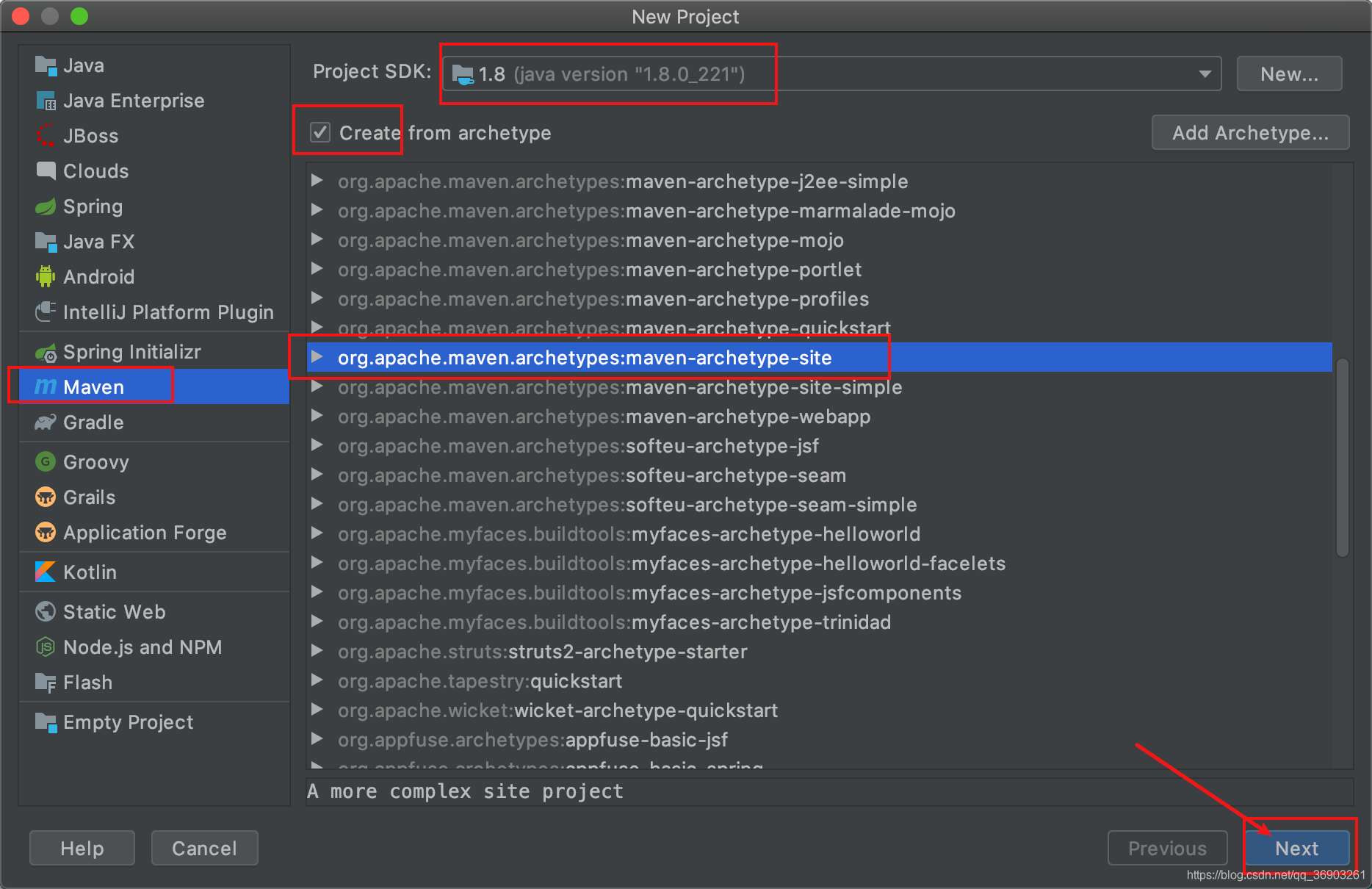

  1. New Project


  1. 聚合总父工程名字
  2. Maven选版本

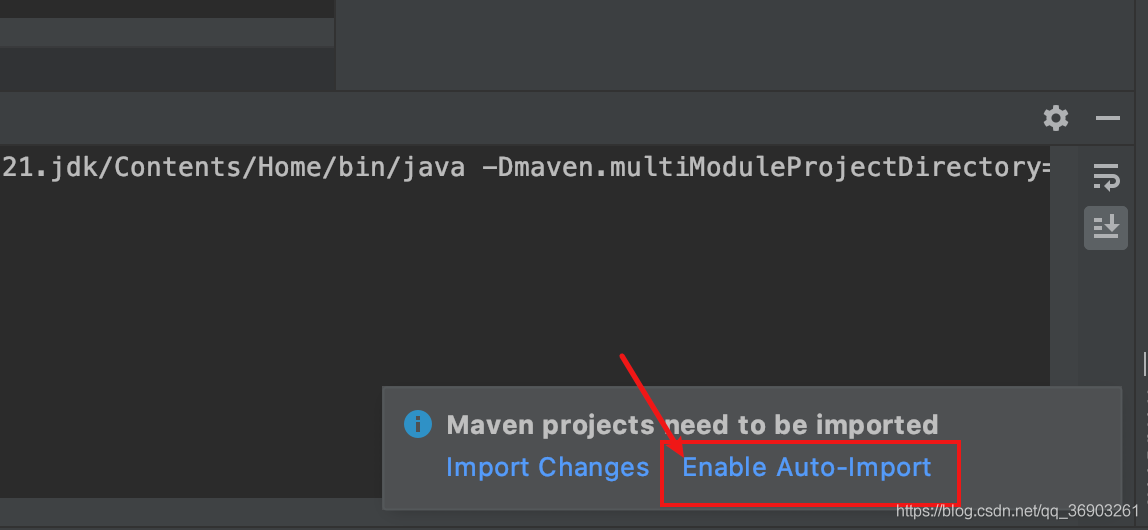

  3. 开启自动导入

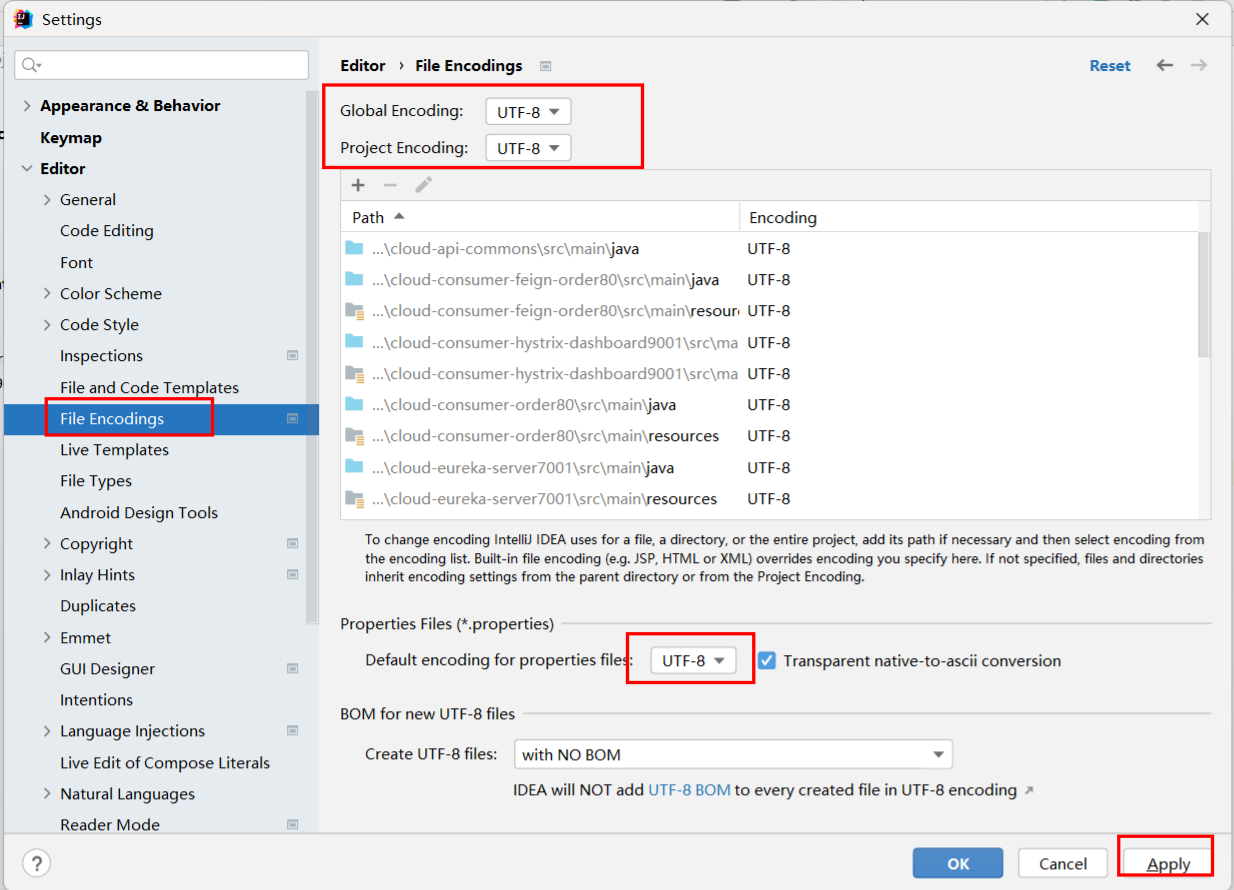

  1. 字符编码

Settings → Editor → File Encodings

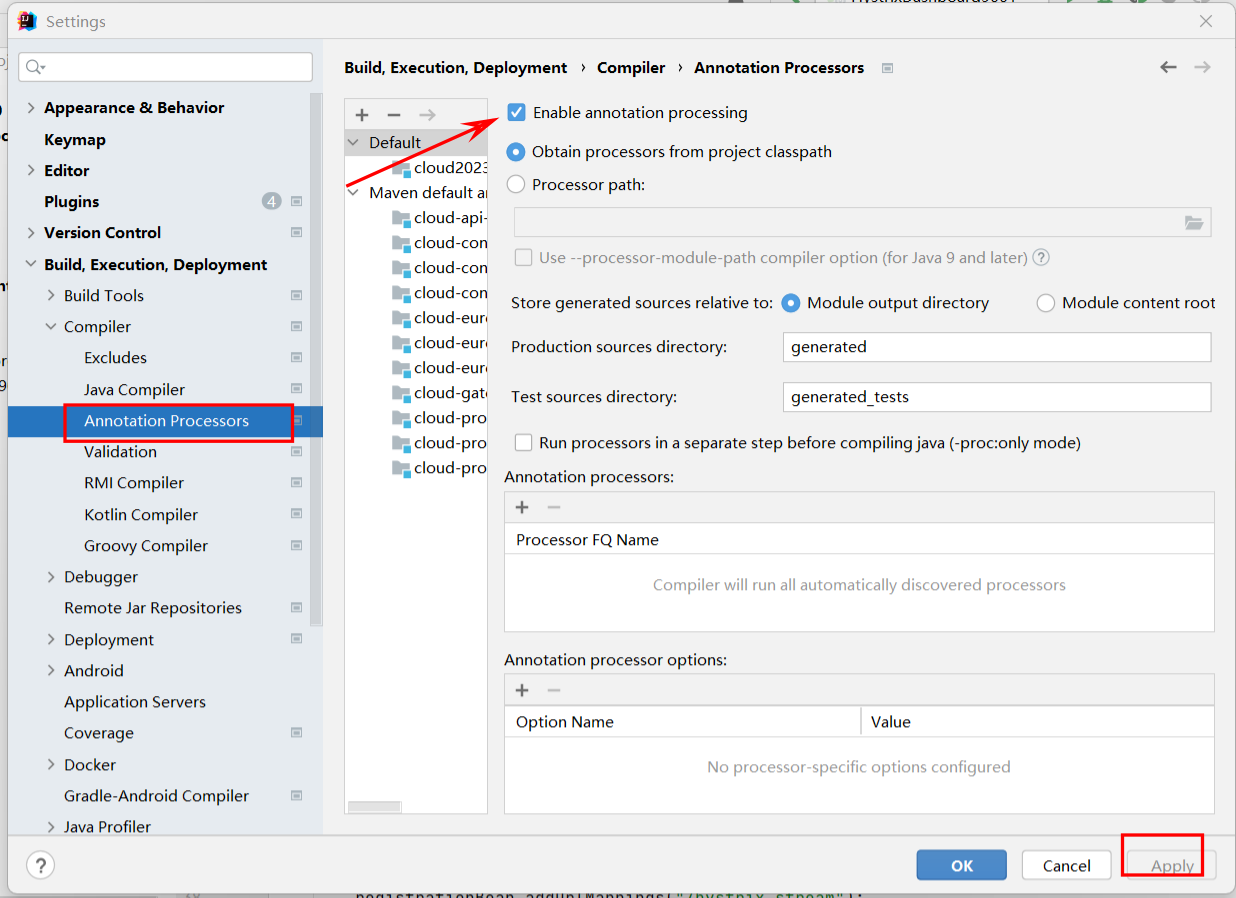

  1. 注解生效激活

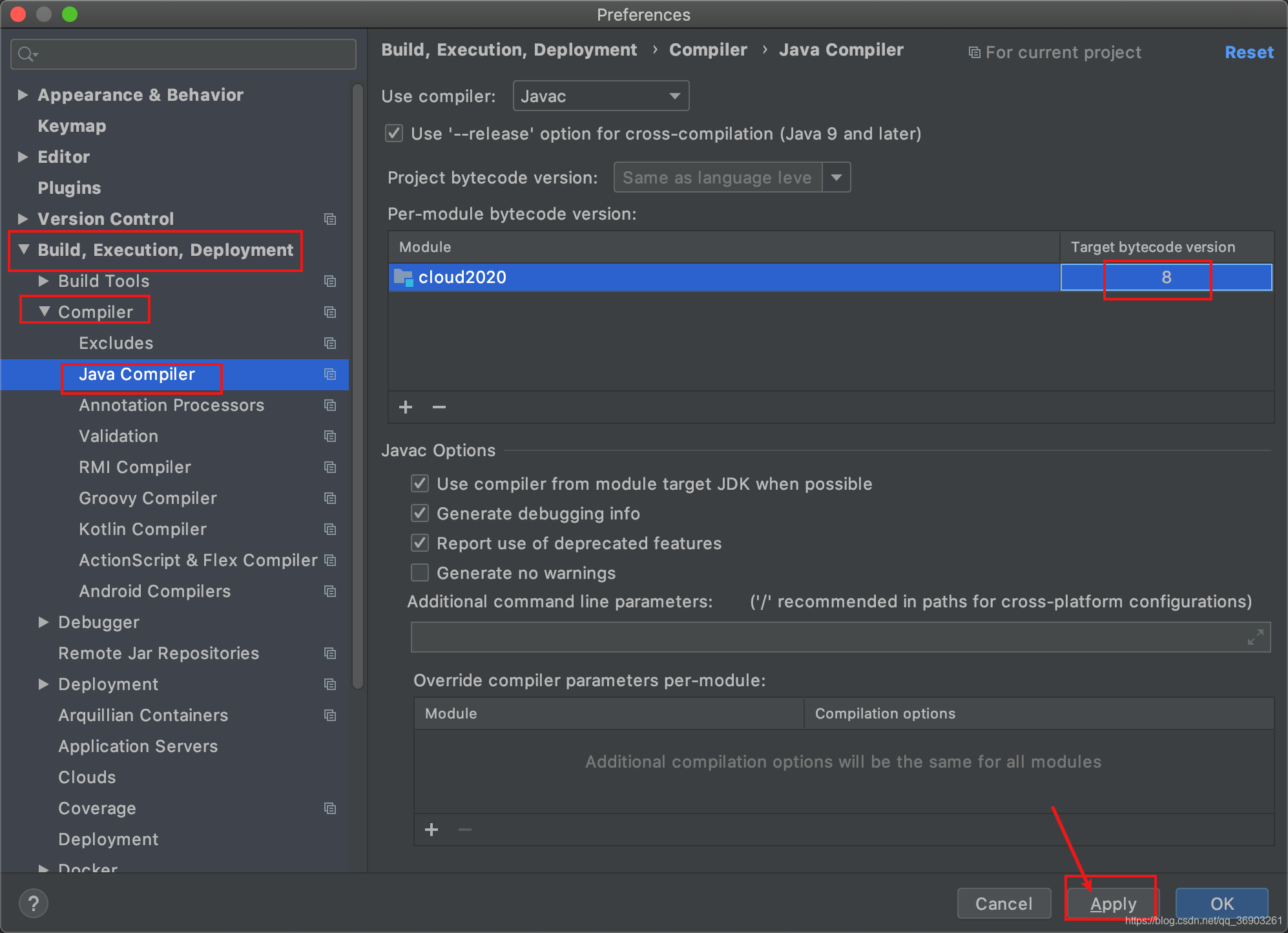

  1. java编译版本选8

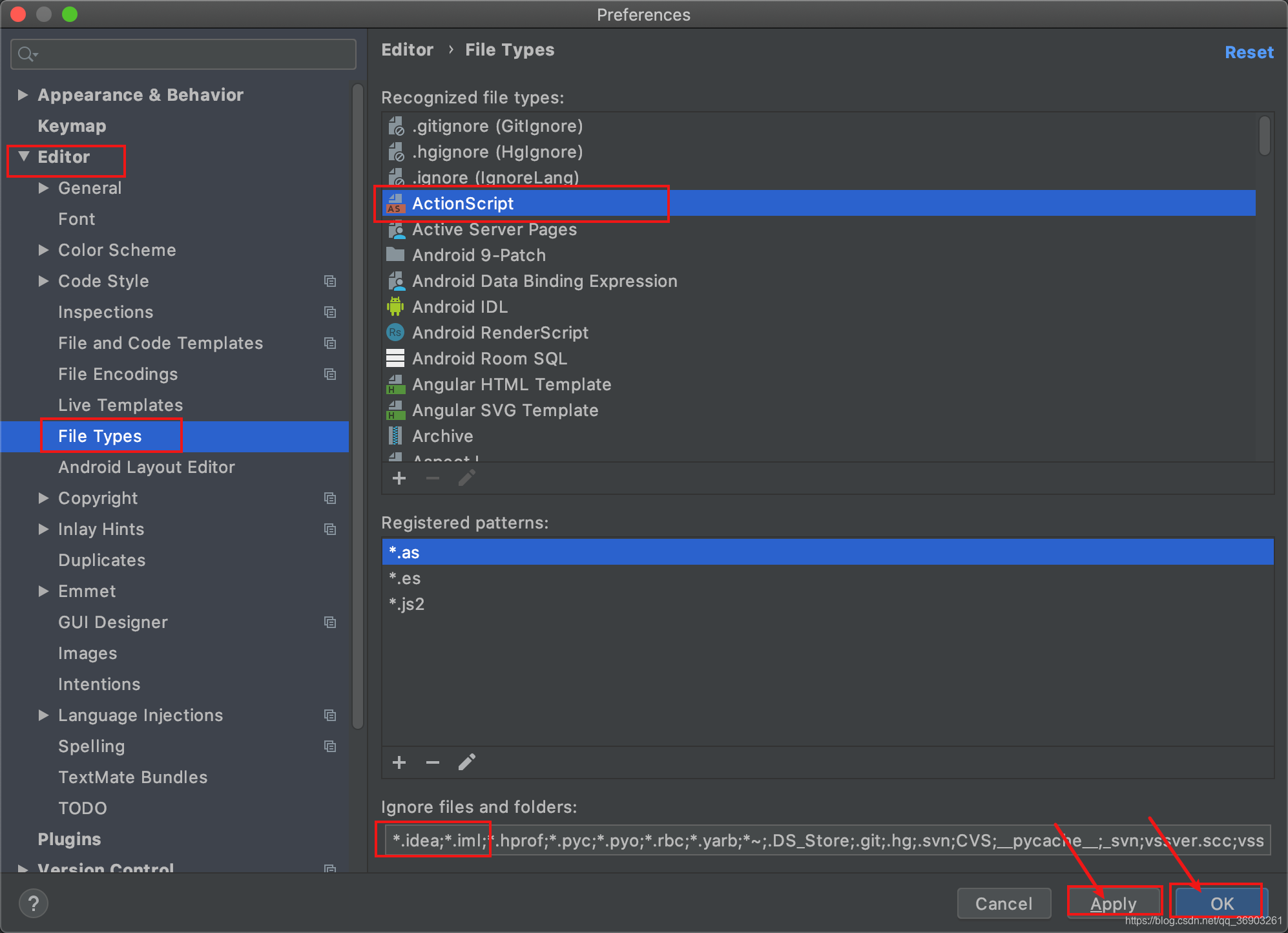

  1. File Type过滤

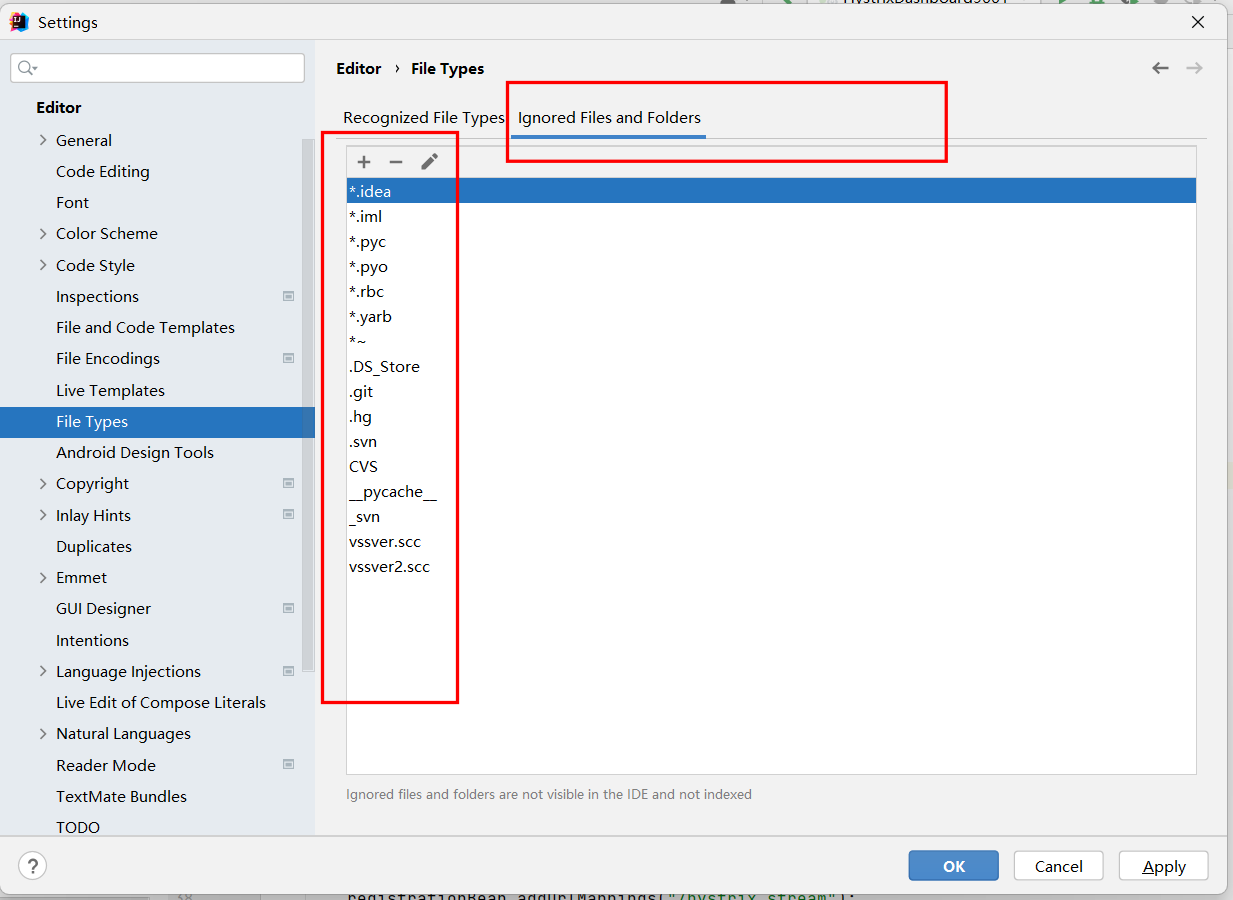

这里File Type 配置

*.idea
*.iml


父工程 pom 配置 ​

父工程 Pom 文件参考配置

<groupId>com.luoqi.springcloud</groupId>
<artifactId>cloud2023</artifactId>
<version>1.0-SNAPSHOT</version>
<packaging>pom</packaging>

<!--统一管理jar包版本-->
<properties>
  <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
  <maven.compiler.source>1.8</maven.compiler.source>
  <maven.compiler.target>1.8</maven.compiler.target>
  <junit.version>4.12</junit.version>
  <lombok.version>1.18.10</lombok.version>
  <log4j.version>1.2.17</log4j.version>
  <mysql.version>8.0.18</mysql.version>
  <druid.version>1.1.20</druid.version>
  <mybatis.spring.boot.version>1.3.2</mybatis.spring.boot.version>
</properties>

<!--子模块继承之后，提供作用：锁定版本+子module不用写groupId和version-->
<dependencyManagement>
  <dependencies>
    <!--spring boot 2.2.2-->
    <dependency>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-dependencies</artifactId>
      <version>2.2.2.RELEASE</version>
      <type>pom</type>
      <scope>import</scope>
    </dependency>
    <!--spring cloud Hoxton.SR1-->
    <dependency>
      <groupId>org.springframework.cloud</groupId>
      <artifactId>spring-cloud-dependencies</artifactId>
      <version>Hoxton.SR1</version>
      <type>pom</type>
      <scope>import</scope>
    </dependency>
    <!--spring cloud alibaba-->
    <dependency>
      <groupId>com.alibaba.cloud</groupId>
      <artifactId>spring-cloud-alibaba-dependencies</artifactId>
      <version>2.2.0.RELEASE</version>
      <type>pom</type>
      <scope>import</scope>
    </dependency>
    <!--mysql-->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>${mysql.version}</version>
      <scope>runtime</scope>
    </dependency>
    <!-- druid-->
    <dependency>
      <groupId>com.alibaba</groupId>
      <artifactId>druid-spring-boot-starter</artifactId>
      <version>${druid.version}</version>
    </dependency>

    <!--mybatis-->
    <dependency>
      <groupId>org.mybatis.spring.boot</groupId>
      <artifactId>mybatis-spring-boot-starter</artifactId>
      <version>${mybatis.spring.boot.version}</version>
    </dependency>
    <!--junit-->
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>${junit.version}</version>
    </dependency>
    <!--log4j-->
    <dependency>
      <groupId>log4j</groupId>
      <artifactId>log4j</artifactId>
      <version>${log4j.version}</version>
    </dependency>

  </dependencies>

</dependencyManagement>

<build>
  <plugins>
    <plugin>
      <groupId>org.springframework.boot</groupId>
      <artifactId>spring-boot-maven-plugin</artifactId>
      <version>2.2.2.RELEASE</version>
      <configuration>
        <fork>true</fork>
        <addResources>true</addResources>
      </configuration>
    </plugin>
  </plugins>
</build>

创建子模块 ​

    1. 新建模块
    1. pom文件对应依赖
    1. yml 配置文件
    1. 启动类以及其他业务类

参考

引用
