ES 整合使用示例

Spring Data Elasticsearch是Spring提供的一种以Spring Data风格来操作数据存储的方式，它可以避免编写大量的样板代码。

常用注解

常用注解说明如下：

注解名称	作用	参数说明
@Document	用于标识映射到Elasticsearch文档上的领域对象	indexName：索引库的名字，MySQL中数据库的概念
@Setting	ES的配置注解	shards：默认分片数 replicas：默认副本数量
@Id	用于标识文档的ID，文档可以认为是MySQL中表行的概念	无参数
@Field	用于标识文档中的字段，可以认为是MySQL中列的概念	type：文档中字段的类型 index：是否建立倒排索引 store：是否进行存储 analyzer：分词器的名称

其中常用的FieldType类型有如下几种：

public enum FieldType {
	Auto("auto"), //自动判断字段类型
	Text("text"), //会进行分词并建了索引的字符类型
	Keyword("keyword"), //不会进行分词建立索引的类型
	Long("long"), //
	Integer("integer"), //
	Short("short"), //
	Byte("byte"), //
	Double("double"), //
	Float("float"), //
	Date("date"), //
	Boolean("boolean"), //
	Object("object"), //
	Nested("nested"), //嵌套对象类型
	Ip("ip"), //
}

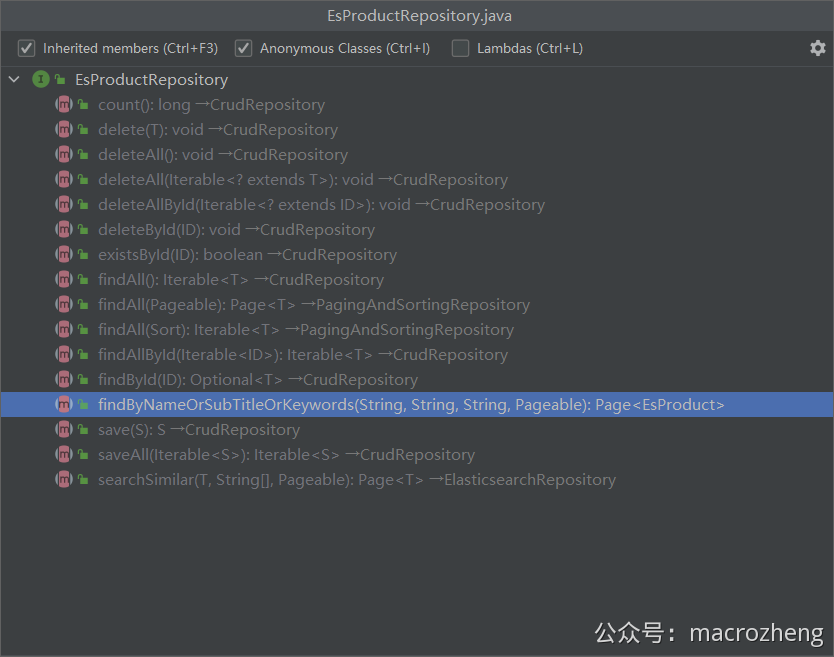

• 继承ElasticsearchRepository接口可以获得常用的数据操作方法；

• 可以使用衍生查询，在接口中直接指定查询方法名称便可查询，无需进行实现，如商品表中有商品名称、标题和关键字，直接定义以下查询，就可以对这三个字段进行全文搜索。

/**
 * @auther macrozheng
 * @description 商品ES操作类
 * @date 2018/6/19
 * @github https://github.com/macrozheng
 */
public interface EsProductRepository extends ElasticsearchRepository<EsProduct, Long> {
    /**
     * 搜索查询
     *
     * @param name              商品名称
     * @param subTitle          商品标题
     * @param keywords          商品关键字
     * @param page              分页信息
     * @return
     */
    Page<EsProduct> findByNameOrSubTitleOrKeywords(String name, String subTitle, String keywords, Pageable page);
}

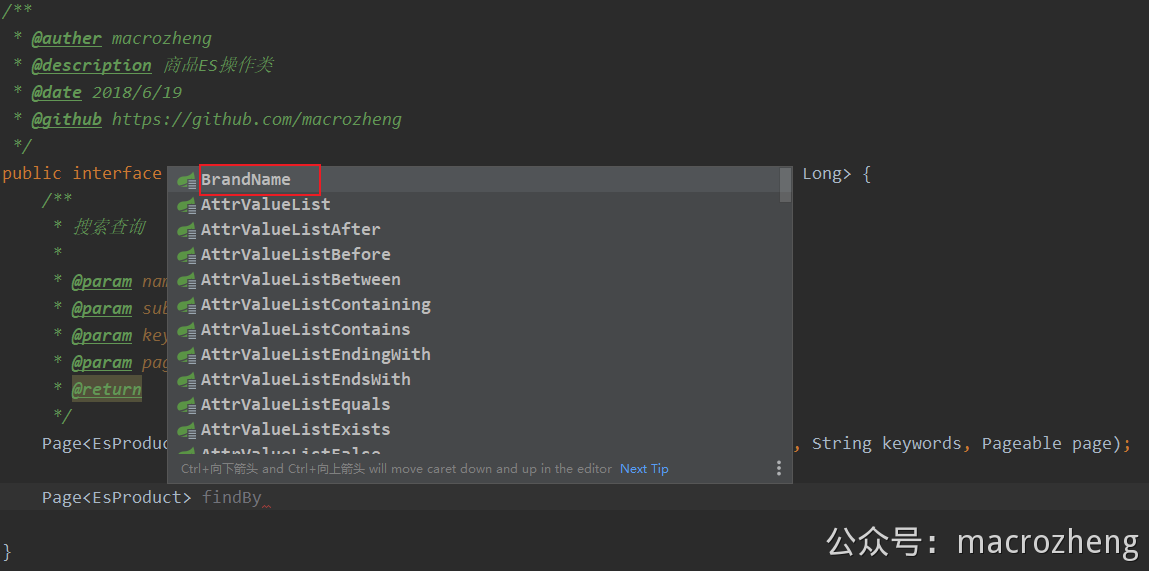

• 在编写衍生查询方法时，IDEA会提示对应字段，更多关键字可以参考衍生查询关键字对照表；

• 通过@Query注解可以使用Elasticsearch的原生DSL语句进行查询；

/**
 * @auther macrozheng
 * @description 商品ES操作类
 * @date 2018/6/19
 * @github https://github.com/macrozheng
 */
public interface EsProductRepository extends ElasticsearchRepository<EsProduct, Long> {
    @Query("{"bool" : {"must" : {"field" : {"name" : " ? 0"}}}}")
    Page<EsProduct> findByName(String name, Pageable pageable);
}

SpringData ES 使用示例

依赖

<!--Elasticsearch相关依赖-->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-elasticsearch</artifactId>
</dependency>

• 修改application.yml配置文件，在spring节点下添加Elasticsearch相关配置；

spring:
  data:
    elasticsearch:
      repositories:
        enabled: true # 开启ES仓库配置，自动为仓库接口生成实现类
  elasticsearch:
    uris: http://localhost:9200 # ES的连接地址及端口号

实现商品搜索功能

添加商品文档对象EsProduct，不需要中文分词的字段设置成Keyword类型，需要中文分词的设置成Text类型，并设置分词器为ik_max_word

/**
 * @auther macrozheng
 * @description 搜索商品的信息
 * @date 2018/6/19
 * @github https://github.com/macrozheng
 */
@Data
@EqualsAndHashCode
@Document(indexName = "pms")
@Setting(shards = 1,replicas = 0)
public class EsProduct implements Serializable {
    private static final long serialVersionUID = -1L;
    @Id
    private Long id;
    @Field(type = FieldType.Keyword)
    private String productSn;
    private Long brandId;
    @Field(type = FieldType.Keyword)
    private String brandName;
    private Long productCategoryId;
    @Field(type = FieldType.Keyword)
    private String productCategoryName;
    private String pic;
    @Field(analyzer = "ik_max_word",type = FieldType.Text)
    private String name;
    @Field(analyzer = "ik_max_word",type = FieldType.Text)
    private String subTitle;
    @Field(analyzer = "ik_max_word",type = FieldType.Text)
    private String keywords;
    private BigDecimal price;
    private Integer sale;
    private Integer newStatus;
    private Integer recommandStatus;
    private Integer stock;
    private Integer promotionType;
    private Integer sort;
    @Field(type =FieldType.Nested)
    private List<EsProductAttributeValue> attrValueList;
}

• 继承ElasticsearchRepository接口，这样就拥有了一些基本的Elasticsearch数据操作方法，同时定义了一个衍生查询方法；

/**
 * @auther macrozheng
 * @description 商品ES操作类
 * @date 2018/6/19
 * @github https://github.com/macrozheng
 */
public interface EsProductRepository extends ElasticsearchRepository<EsProduct, Long> {
    /**
     * 搜索查询
     *
     * @param name              商品名称
     * @param subTitle          商品标题
     * @param keywords          商品关键字
     * @param page              分页信息
     * @return
     */
    Page<EsProduct> findByNameOrSubTitleOrKeywords(String name, String subTitle, String keywords, Pageable page);

}

• 添加EsProductService，定义好ES的操作方法；

/**
 * @auther macrozheng
 * @description 商品搜索管理Service
 * @date 2018/6/19
 * @github https://github.com/macrozheng
 */
public interface EsProductService {
    /**
     * 从数据库中导入所有商品到ES
     */
    int importAll();

    /**
     * 根据id删除商品
     */
    void delete(Long id);

    /**
     * 根据id创建商品
     */
    EsProduct create(Long id);

    /**
     * 批量删除商品
     */
    void delete(List<Long> ids);

    /**
     * 根据关键字搜索名称或者副标题
     */
    Page<EsProduct> search(String keyword, Integer pageNum, Integer pageSize);

}

• 添加EsProductService接口的实现类EsProductServiceImpl；

/**
 * @auther macrozheng
 * @description 搜索商品管理Service实现类
 * @date 2018/6/19
 * @github https://github.com/macrozheng
 */
@Service
public class EsProductServiceImpl implements EsProductService {
    private static final Logger LOGGER = LoggerFactory.getLogger(EsProductServiceImpl.class);
    @Autowired
    private EsProductDao productDao;
    @Autowired
    private EsProductRepository productRepository;
    @Override
    public int importAll() {
        List<EsProduct> esProductList = productDao.getAllEsProductList(null);
        Iterable<EsProduct> esProductIterable = productRepository.saveAll(esProductList);
        Iterator<EsProduct> iterator = esProductIterable.iterator();
        int result = 0;
        while (iterator.hasNext()) {
            result++;
            iterator.next();
        }
        return result;
    }

    @Override
    public void delete(Long id) {
        productRepository.deleteById(id);
    }

    @Override
    public EsProduct create(Long id) {
        EsProduct result = null;
        List<EsProduct> esProductList = productDao.getAllEsProductList(id);
        if (esProductList.size() > 0) {
            EsProduct esProduct = esProductList.get(0);
            result = productRepository.save(esProduct);
        }
        return result;
    }

    @Override
    public void delete(List<Long> ids) {
        if (!CollectionUtils.isEmpty(ids)) {
            List<EsProduct> esProductList = new ArrayList<>();
            for (Long id : ids) {
                EsProduct esProduct = new EsProduct();
                esProduct.setId(id);
                esProductList.add(esProduct);
            }
            productRepository.deleteAll(esProductList);
        }
    }

    @Override
    public Page<EsProduct> search(String keyword, Integer pageNum, Integer pageSize) {
        Pageable pageable = PageRequest.of(pageNum, pageSize);
        return productRepository.findByNameOrSubTitleOrKeywords(keyword, keyword, keyword, pageable);
    }

}

• 添加EsProductController定义接口。

/**
 * @auther macrozheng
 * @description 搜索商品管理Controller
 * @date 2018/6/19
 * @github https://github.com/macrozheng
 */
@Controller
@Api(tags = "EsProductController")
@Tag(name = "EsProductController", description = "搜索商品管理")
@RequestMapping("/esProduct")
public class EsProductController {
    @Autowired
    private EsProductService esProductService;

    @ApiOperation(value = "导入所有数据库中商品到ES")
    @RequestMapping(value = "/importAll", method = RequestMethod.POST)
    @ResponseBody
    public CommonResult<Integer> importAllList() {
        int count = esProductService.importAll();
        return CommonResult.success(count);
    }

    @ApiOperation(value = "根据id删除商品")
    @RequestMapping(value = "/delete/{id}", method = RequestMethod.GET)
    @ResponseBody
    public CommonResult<Object> delete(@PathVariable Long id) {
        esProductService.delete(id);
        return CommonResult.success(null);
    }

    @ApiOperation(value = "根据id批量删除商品")
    @RequestMapping(value = "/delete/batch", method = RequestMethod.POST)
    @ResponseBody
    public CommonResult<Object> delete(@RequestParam("ids") List<Long> ids) {
        esProductService.delete(ids);
        return CommonResult.success(null);
    }

    @ApiOperation(value = "根据id创建商品")
    @RequestMapping(value = "/create/{id}", method = RequestMethod.POST)
    @ResponseBody
    public CommonResult<EsProduct> create(@PathVariable Long id) {
        EsProduct esProduct = esProductService.create(id);
        if (esProduct != null) {
            return CommonResult.success(esProduct);
        } else {
            return CommonResult.failed();
        }
    }

    @ApiOperation(value = "简单搜索")
    @RequestMapping(value = "/search/simple", method = RequestMethod.GET)
    @ResponseBody
    public CommonResult<CommonPage<EsProduct>> search(@RequestParam(required = false) String keyword,
                                                      @RequestParam(required = false, defaultValue = "0") Integer pageNum,
                                                      @RequestParam(required = false, defaultValue = "5") Integer pageSize) {
        Page<EsProduct> esProductPage = esProductService.search(keyword, pageNum, pageSize);
        return CommonResult.success(CommonPage.restPage(esProductPage));
    }
}

衍生查询关键字对照表

Keyword	Sample	Elasticsearch Query String
And	findByNameAndPrice	{ "query" : { "bool" : { "must" : [ { "query_string" : { "query" : "?", "fields" : [ "name" ] } }, { "query_string" : { "query" : "?", "fields" : [ "price" ] } } ] } }}
Or	findByNameOrPrice	{ "query" : { "bool" : { "should" : [ { "query_string" : { "query" : "?", "fields" : [ "name" ] } }, { "query_string" : { "query" : "?", "fields" : [ "price" ] } } ] } }}
Is	findByName	{ "query" : { "bool" : { "must" : [ { "query_string" : { "query" : "?", "fields" : [ "name" ] } } ] } }}
Not	findByNameNot	{ "query" : { "bool" : { "must_not" : [ { "query_string" : { "query" : "?", "fields" : [ "name" ] } } ] } }}
Between	findByPriceBetween	{ "query" : { "bool" : { "must" : [ {"range" : {"price" : {"from" : ?, "to" : ?, "include_lower" : true, "include_upper" : true } } } ] } }}
LessThan	findByPriceLessThan	{ "query" : { "bool" : { "must" : [ {"range" : {"price" : {"from" : null, "to" : ?, "include_lower" : true, "include_upper" : false } } } ] } }}
LessThanEqual	findByPriceLessThanEqual	{ "query" : { "bool" : { "must" : [ {"range" : {"price" : {"from" : null, "to" : ?, "include_lower" : true, "include_upper" : true } } } ] } }}
GreaterThan	findByPriceGreaterThan	{ "query" : { "bool" : { "must" : [ {"range" : {"price" : {"from" : ?, "to" : null, "include_lower" : false, "include_upper" : true } } } ] } }}
GreaterThanEqual	findByPriceGreaterThan	{ "query" : { "bool" : { "must" : [ {"range" : {"price" : {"from" : ?, "to" : null, "include_lower" : true, "include_upper" : true } } } ] } }}
Before	findByPriceBefore	{ "query" : { "bool" : { "must" : [ {"range" : {"price" : {"from" : null, "to" : ?, "include_lower" : true, "include_upper" : true } } } ] } }}
After	findByPriceAfter	{ "query" : { "bool" : { "must" : [ {"range" : {"price" : {"from" : ?, "to" : null, "include_lower" : true, "include_upper" : true } } } ] } }}
Like	findByNameLike	{ "query" : { "bool" : { "must" : [ { "query_string" : { "query" : "?*", "fields" : [ "name" ] }, "analyze_wildcard": true } ] } }}
StartingWith	findByNameStartingWith	{ "query" : { "bool" : { "must" : [ { "query_string" : { "query" : "?*", "fields" : [ "name" ] }, "analyze_wildcard": true } ] } }}
EndingWith	findByNameEndingWith	{ "query" : { "bool" : { "must" : [ { "query_string" : { "query" : "*?", "fields" : [ "name" ] }, "analyze_wildcard": true } ] } }}
Contains/Containing	findByNameContaining	{ "query" : { "bool" : { "must" : [ { "query_string" : { "query" : "?", "fields" : [ "name" ] }, "analyze_wildcard": true } ] } }}
In (when annotated as FieldType.Keyword)	findByNameIn(Collectionnames)	{ "query" : { "bool" : { "must" : [ {"bool" : {"must" : [ {"terms" : {"name" : ["?","?"]}} ] } } ] } }}
In	findByNameIn(Collectionnames)	{ "query": {"bool": {"must": [{"query_string":{"query": ""?" "?"", "fields": ["name"]}}]}}}
NotIn (when annotated as FieldType.Keyword)	findByNameNotIn(Collectionnames)	{ "query" : { "bool" : { "must" : [ {"bool" : {"must_not" : [ {"terms" : {"name" : ["?","?"]}} ] } } ] } }}
NotIn	findByNameNotIn(Collectionnames)	{"query": {"bool": {"must": [{"query_string": {"query": "NOT("?" "?")", "fields": ["name"]}}]}}}
True	findByAvailableTrue	{ "query" : { "bool" : { "must" : [ { "query_string" : { "query" : "true", "fields" : [ "available" ] } } ] } }}
False	findByAvailableFalse	{ "query" : { "bool" : { "must" : [ { "query_string" : { "query" : "false", "fields" : [ "available" ] } } ] } }}
OrderBy	findByAvailableTrueOrderByNameDesc	{ "query" : { "bool" : { "must" : [ { "query_string" : { "query" : "true", "fields" : [ "available" ] } } ] } }, "sort":[{"name":{"order":"desc"}}] }
Exists	findByNameExists	{"query":{"bool":{"must":[{"exists":{"field":"name"}}]}}}
IsNull	findByNameIsNull	{"query":{"bool":{"must_not":[{"exists":{"field":"name"}}]}}}
IsNotNull	findByNameIsNotNull	{"query":{"bool":{"must":[{"exists":{"field":"name"}}]}}}
IsEmpty	findByNameIsEmpty	{"query":{"bool":{"must":[{"bool":{"must":[{"exists":{"field":"name"}}],"must_not":[{"wildcard":{"name":{"wildcard":"*"}}}]}}]}}}
IsNotEmpty	findByNameIsNotEmpty	{"query":{"bool":{"must":[{"wildcard":{"name":{"wildcard":"*"}}}]}}}
